PROTO – circuit simulator

PROTO – circuit simulator Overview

Are you looking for tools like Multisim, SPICE, LTspice, Proteus, Altium or PhET simulations? That’s great! PROTO is an real time electronic circuit simulator which means you are able to setup a circuit with various components and simulate behaviour of the electronic circuit.

During simulation you can check voltages, currents and many other variables. Check signals on multichannel oscilioscope and tune your circuit in real time! Our app can greatly help with your Raspberry Pi, Arduino or ESP32 project. You can also use PROTO as logic circuit simulator and perform digital electronic analysis!

Features of PROTO – circuit simulator

• Animations of voltage values and current flows

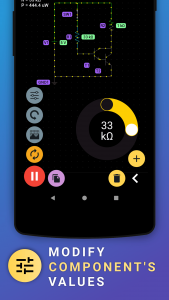

• Adjusts circuit parameters (like voltage, current and other)

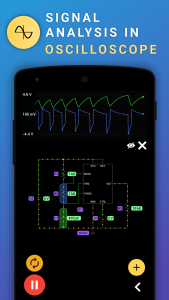

• Four-channel oscilloscope
• Single play/pause button to control simulation
• Copy electronic components

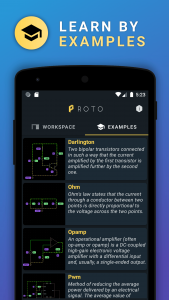

• Learn about electronic circuits by examples in app
• Share circuit with friends
• Themes (Dark, Light, Ocean, Solarized)
• PNG, JPG, PDF circuit export
• Export workspace
• Video tutorials about electronics
• Arduino support in future

Components

• DC, AC, Square, Trinagle, Sawtooth, Pulse, Noise voltage source
• Current source
• Resistor
• Potentiometer
• Capacitor
• Polarized capacitor
• Inductor
• Transformer
• Diode (rectifying diode, LED, Zener, Schottky)
• Transistor (NPN, PNP, N and P channel Mosfet)
• Switches (SPST, Relay)
• Bulb
• Operational amplifier
• Timer 555 (NE555)
• Digital Gates (AND, NAND, OR, XOR, NOR, NXOR, Inverter)
• Voltmeter
• Ammeter
• Fuse
• Photoresistor (uses phone light sensor)
• Analog-to-digital converter (ADC)
• Accelerometer (uses phone accelerometer sensor)
• FM source
• Logic Input
• Memristor
• Logic output
• Probe
• Voltage rail

System Requirements for PROTO – circuit simulator

RAM: 2 GB

Operating System: Android 6.0+

Space Required: 100 MB
